Thumbs up Sanhua Hid Kit Review / Install PICS!
Well seeing all the talk of hid kits and all i figured sure why not get one of these kits and see how they are. I got the Sanhua kit from a very excellent ebay vendor located in china. Paid for the kit Monday had it the next day all the way from china and im located in Texas.!! the seller is great and service is fast. You are provided a tracking number and when you check on the ups site it lists it as being sent Express

Picked up the kit
The brand is from Sanhua:
blub type 9006
color temp 4300k

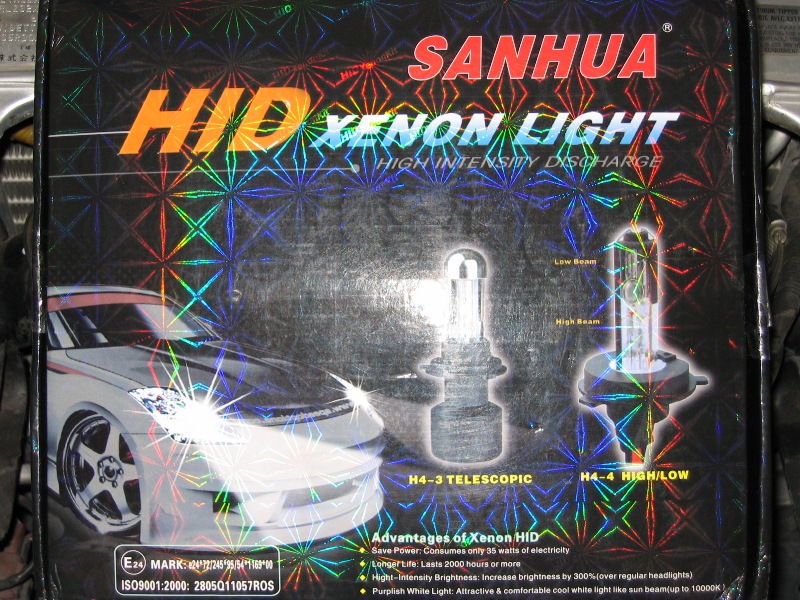

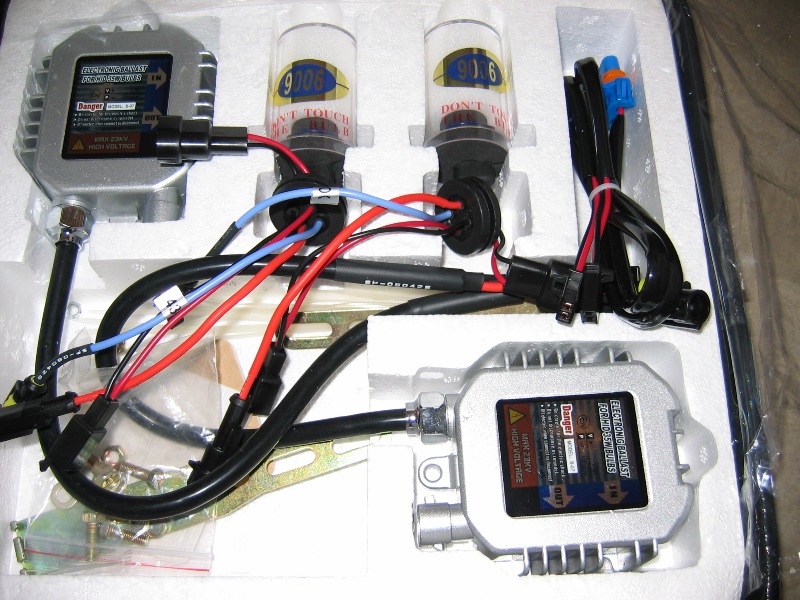

Above is the box shot, open it up and we are greeted with the below

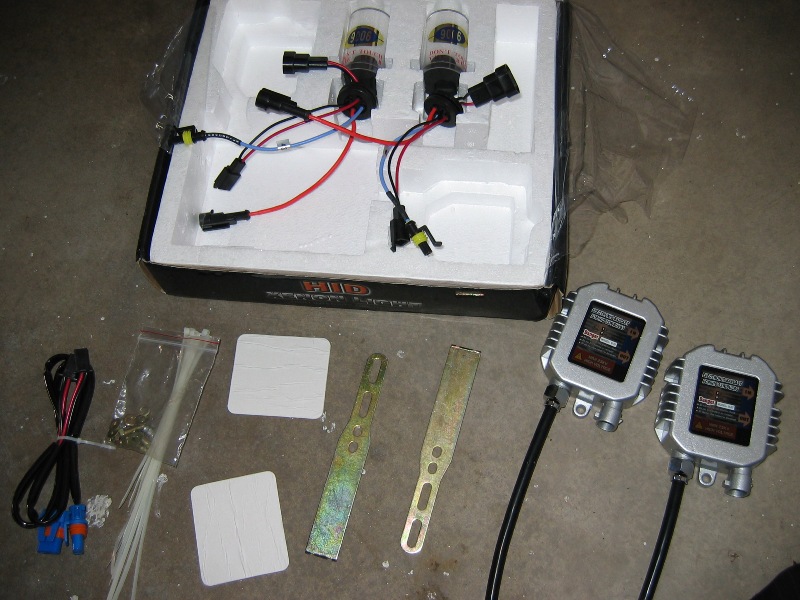

2 ballasts, 2 9006 bulbs, wiring, zipties, mounting brackets and some mounting sticky pads, instruction set



First step is to unplug the stock bulbs , very easy just push in the clip and pull down on the stock power connector to the bulbs. turn stock bulb and pull out. The Sanhua kit uses the power connector to connect to the power connector located on the bulb.


Here in my hand i am holding the power connector on the hid bulbs that connects right into the oem power source pictured above. the other wires pictured will connect to the wire on the ballast


Remove the bulbs from the casing

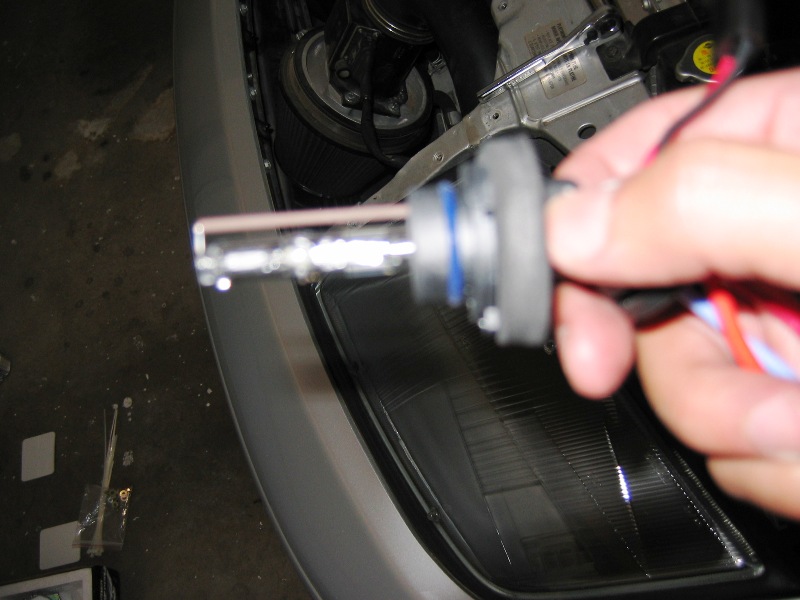

Sorry for the blurry picture

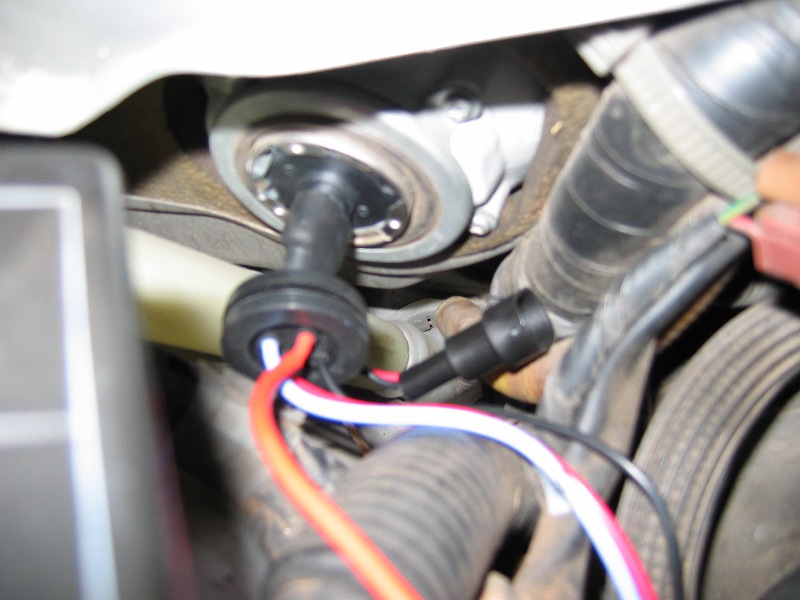

The 9006 hid bulb has the same 3 prong connectors that twist in so stick in the new bulb carefully (remember never touch the bulb with your fingers!)
and turn

hid bulbs are set to go

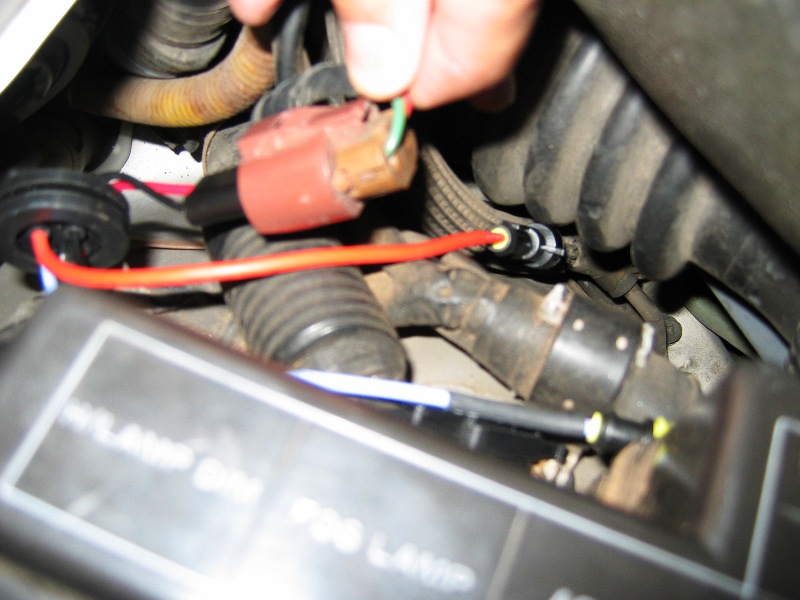

now just clip in the power connector that normally connects to the oem bulbs to the one in the hid bulb show above in black. and here


Repeat the same thing for the other side

Now you need to figure out where you want to mount your ballasts. You can use the sticky pads or the zip ties or use the brackets. Many different ways you can go. I like this kit because it comes with mounting brackets that let you position the ballast 3 different ways
example

you can mount the bracket so that you can drill or screw it in so the ballast is vertical. or below horizontal. either right or left


I looked around and figured i could use a few different spots but i came up with this utlizing the mounting bracket.

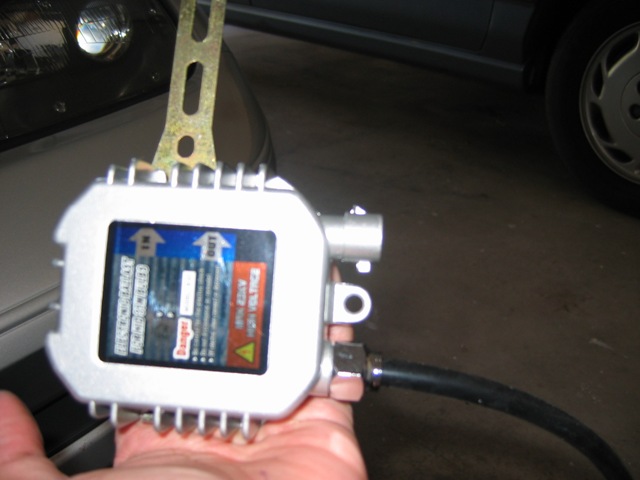

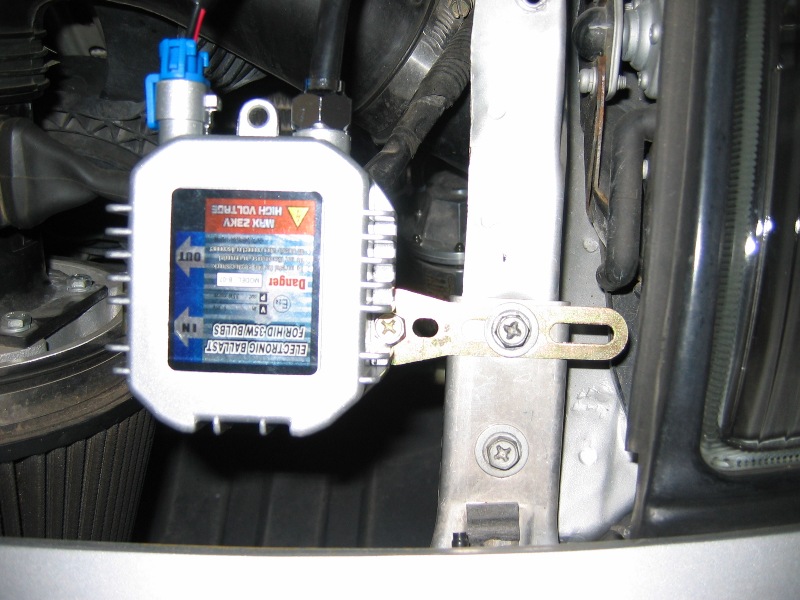

Mount the bracket to the ballast secure it with the suppled bolts and get it pretty tight on there so it wont slip off.

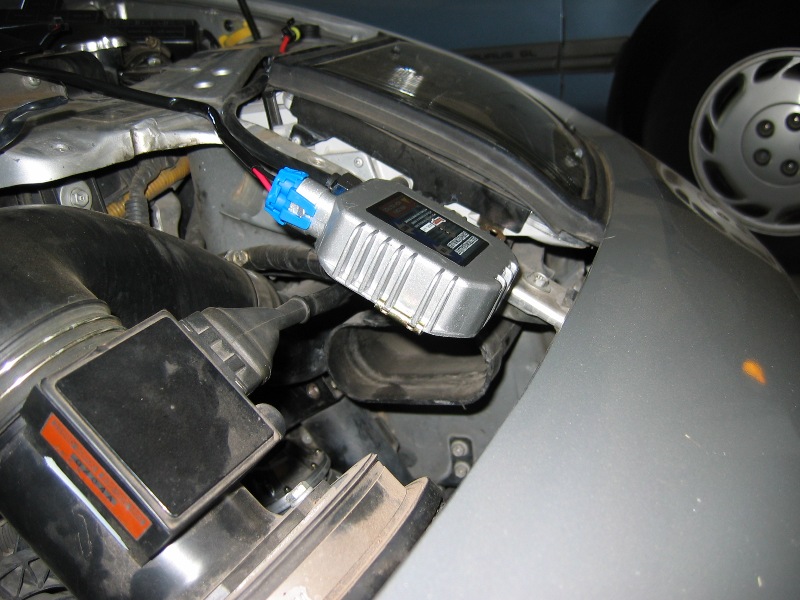

unbolt the top bolt as pictured (2nd bolt location would put the ballast too far away from the wires to reach) slide the bracket in there and just put the bolt back in and tighten back in. Easy!
here is another picture

the ballasts sit right under the nose part with no clearance problems what so ever. if you want you can even bend the mounting brackets down now so to angle the ballasts down, so instead of sticking straight out they bend down.
Totally up to you.

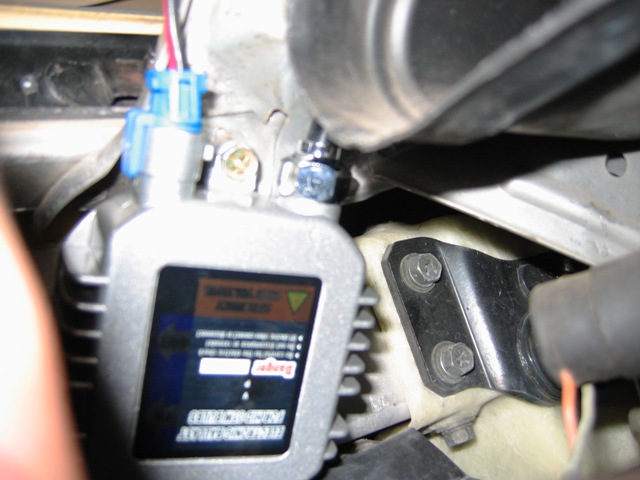

Also when looking for mounting places i located another point *but might be out of reach of the wires..not a problem for you guys that like to splice wires and make them a bit longer*

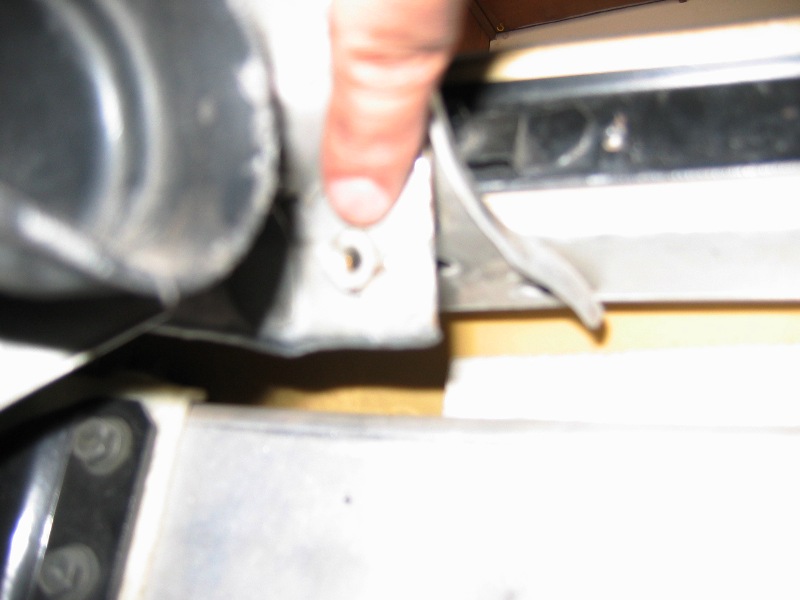

located on the inside there is a perfect size hole that matches up with this unused bolt hole. it securely fastens it.

another pic


Moving back on track
connect the blue connector into the ballast

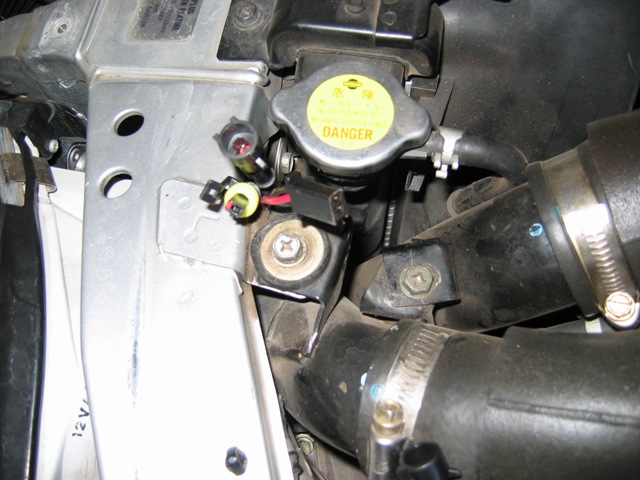

and run both wires coming off the ballast back towards the bulb location
There is a nice little gap to run on both sides and go under the mounting bracket

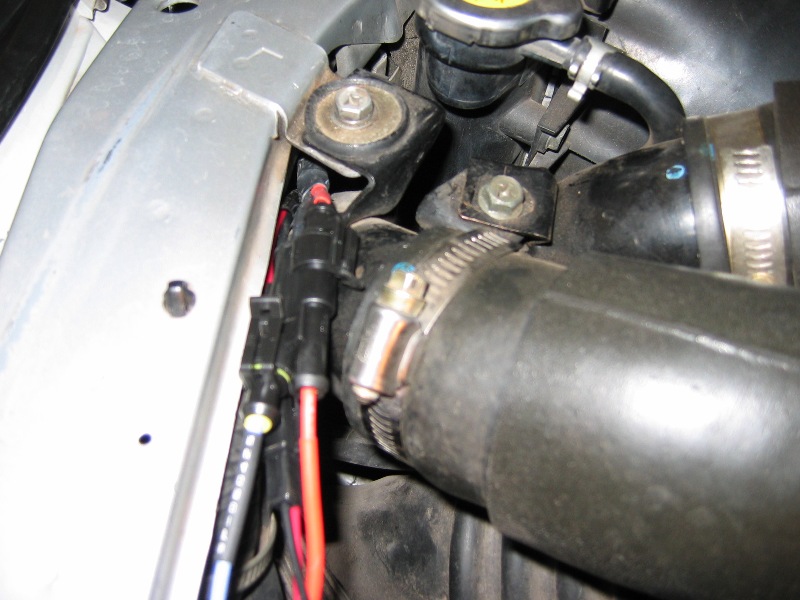

Now connect the 3 wires yes its color coded no worry about doing red to black or whatever its straight red to red black to black etc

And thats IT! one side down now do the other side.

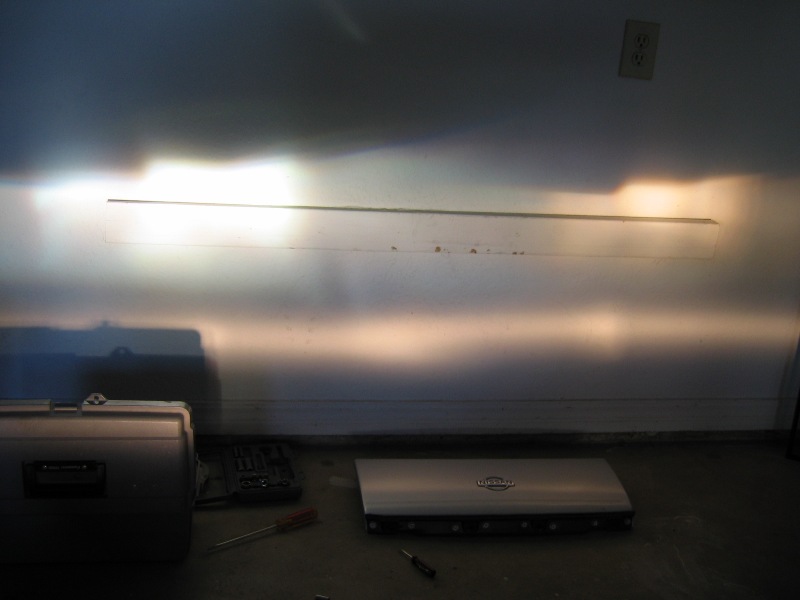

with one on i wanted to compare the 4300k bulb in the oem projector vs a hallogen bulb in the oem projector. and yes i left my fog lights on as you can tell in the pictures.

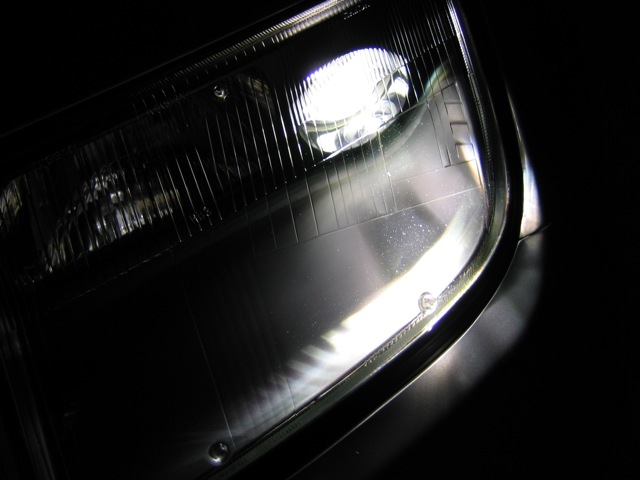

Driver side hid on

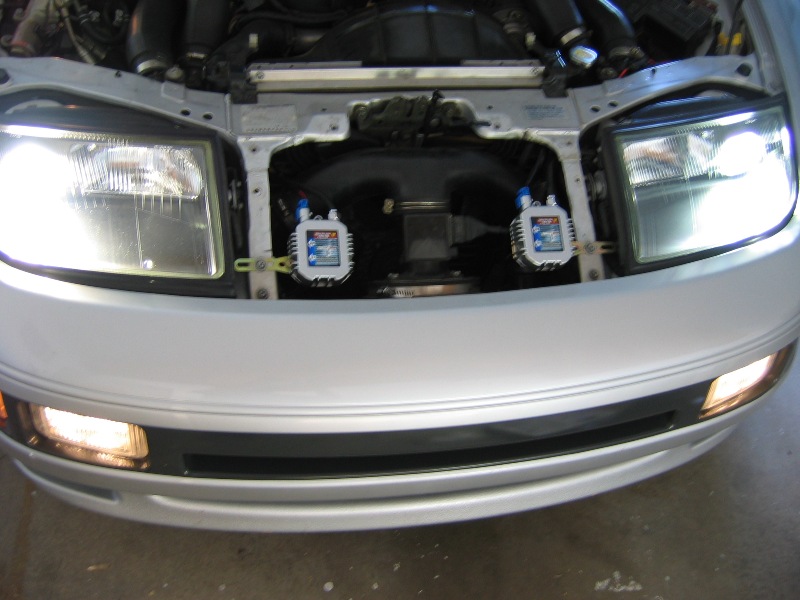

Both Mounted


Both lights on. The passender looks a bit yellow in the pic since it was just barely turned on. When you first trun them on they are a very sweet pure whitecolor with a hit of a blue but it turns to a clear beautiful white

Driver Side

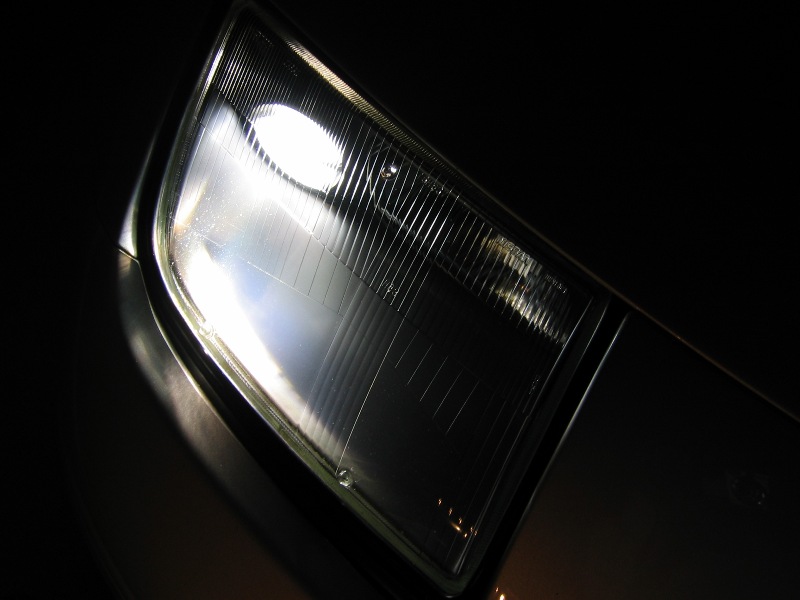

Passenger Side


and the cut off zones





Over all I am very impressed with this Kit, Everything went great, Install was a no brainer. No cutting or splicing wires. Truely a plug and play kit, The price is $188 US dollars Shipped and you get it in about 2days or 3days.!
For the price its a great upgrade from stock bulbs. The pics dont really do the light justice. i stood back and didnt really get any glare that i could see and went down the road a bit and looked at the lights from a distance and they were pretty nice. Driving home thigns were light up very nice, the 4300k gives things a very nice white light.
Thanks for your time
Last edited by pinkdotts : 04-27-2006 at 04:28 AM.
pinkdotts is online now   Reply With Quote Quick reply to this message
Old 04-27-2006, 04:17 AM   #2
1990 FairladyZ
Administrator Nazi

1990 FairladyZ's Avatar

Join Date: Dec 2002
Location: Rolla, MO
Make/Model: Gold 1990 NA & CRP 2+2TT
Trader Rating: (13)
Posts: 6,230
Send a message via ICQ to 1990 FairladyZ Send a message via AIM to 1990 FairladyZ
Re: Sanhua Hid Kit Review / Install PICS!
Very nice, and thanks for the writeup!
________________________
'If you tolerate this, then your children will be next'
Clicky for info


300zxclub.com Rules:
Rule #1 - The 3ZC Administrators and Moderators are always right.

Rule #2 - If you think the Administrators and Moderators are wrong, see rule # 1.
Quote:
Originally Posted by Zeromayo
Probably to concerned with drifting that left hand turn.

Chris loves to play leapfrog with UNICORNS!!!!!!
1990 FairladyZ is offline Report Bad Post   Reply With Quote Quick reply to this message
Old 04-27-2006, 04:21 AM   #3
My Fairlady Z
The Anti-Mod

My Fairlady Z's Avatar

Join Date: May 2004
Location: Washington State
Make/Model: 93 All Natural
Trader Rating: (2)
Posts: 1,295
Send a message via AIM to My Fairlady Z
Re: Sanhua Hid Kit Review / Install PICS!
Niiiiiice.

Hmm, I think I'm gunna have to splurge.
________________________

Z UNDER CONSTRUCTION!

Quote:
Originally Posted by '92T-Top
If you can have car and drivers best car for 6 years in a row, then you can have AE's best model.


saufen420: Man, i'm so buying intercoolers to make my air jdm cold
JustBiz03: lol your Naturally Aspirated Air?
saufen420: Yeah..so?!
saufen420: YEAH..!??!
saufen420: SO...!??!
JustBiz03: hahaha
My Fairlady Z is online now Report Bad Post   Reply With Quote Quick reply to this message
Old 04-27-2006, 04:58 AM   #4
RicerX
Wish I had a Z.

RicerX's Avatar

Join Date: Mar 2006
Location: Fremont
Make/Model: if i had one it'd probably be N/A :P
Trader Rating: (0)
Posts: 11
Send a message via AIM to RicerX Send a message via MSN to RicerX
Re: Sanhua Hid Kit Review / Install PICS!
Looks nice but does it burn the eyes of other drivers? hah
________________________


I wish I had a Z. Although I do "own" a B12 Sentra...hell it's a Nissan.
RicerX is offline Report Bad Post   Reply With Quote Quick reply to this message
Old 04-27-2006, 05:22 AM   #5
greatgonzer
NA to TT member

greatgonzer's Avatar

Join Date: Apr 2003
Location: Albuquerque, NM
Make/Model: 1990 NA Converted to TT
Trader Rating: (2)
Posts: 1,902
Re: Sanhua Hid Kit Review / Install PICS!
Very nice...I have the same kit except that I purchased the 6000k Sanhua HID kit. I love it. Here is the link to compare my 6000k to Pinkdot's 4300K ones... http://www.300zxclub.com/showthread.php?t=74185&page=1&pp=30
________________________
GREAT GonZer

Wanna C picks Of My Z...
greatgonzer is online now Report Bad Post   Reply With Quote Quick reply to this message
Old 04-27-2006, 06:20 AM   #6
turtleboy
Super Moderator

turtleboy's Avatar

Join Date: Oct 2002
Location: Santa Barbara, California
Make/Model: 91tt & 84brick
Trader Rating: (1)
Posts: 7,305
Send a message via ICQ to turtleboy Send a message via AIM to turtleboy Send a message via MSN to turtleboy Send a message via Yahoo to turtleboy
Re: Sanhua Hid Kit Review / Install PICS!
Quote:
Originally Posted by RicerX
Looks nice but does it burn the eyes of other drivers? hah


If aimed correctly, it doesn't really matter how bright your lights are, as long as they are below 5000k color temp, they won't blind people.

If your headlights are aimed wrong, then of course they will shine in the eyes of oncoming drivers.
________________________
(GOLD > ALL)
I <3 GOLD Z's

"Turbo lag is gods way of giving v8's a chance."
turtleboy is online now Report Bad Post   Reply With Quote Quick reply to this message
Old 04-27-2006, 06:32 AM   #7
arm92zx
LA z32 member

arm92zx's Avatar

Join Date: Sep 2005
Location: La Crescenta
Trader Rating: (0)
Posts: 116
Re: Sanhua Hid Kit Review / Install PICS!
Very nice! I have searched about them also and going to place an order within next week.
arm92zx is online now Report Bad Post   Reply With Quote Quick reply to this message
Old 04-27-2006, 01:57 PM   #8
themozz
Member

Join Date: Oct 2002
Trader Rating: (0)
Posts: 231
Send a message via AIM to themozz
Re: Sanhua Hid Kit Review / Install PICS!
Thats Not Bad! sign me up for a set!

i like your ballast location thats the first ive seen that
good thinking!
themozz is offline Report Bad Post   Reply With Quote Quick reply to this message
Old 04-27-2006, 09:10 PM   #9
Spyder Z 15
6'8" SuperMod

Spyder Z 15's Avatar

Join Date: May 2003
Location: Riverside 951
Make/Model: 1990 N/A 2+2 Auto *Black Widow*
Trader Rating: (4)
Posts: 9,893
Re: Sanhua Hid Kit Review / Install PICS!
Very nice.
________________________

Mod List
[Powertrix grounding kit] [Eclipse-8443] [Kenwood KAC-642] [eDi 6000 components] [eDead v3 sound deadening *to be painted on*] [JDM Yokohama AVS-5 17x8 17x9 *awaiting rubber*]
Click pic for gay porn of my homosexual mod pal.
Spyder Z 15 is offline Report Bad Post   Reply With Quote Quick reply to this message
Old Yesterday, 01:57 AM   #10
Z_man
Newbie

Join Date: May 2005
Trader Rating: (0)
Posts: 1
Re: Sanhua Hid Kit Review / Install PICS!
where did u get the set from, do u have a web site link..
cdelgado77@yahoo.com
LMK

Thanks
Z_man is offline Report Bad Post   Reply With Quote Quick reply to this message
Old Yesterday, 02:09 AM   #11
freakonaleash1187
classifieds a-hole

freakonaleash1187's Avatar

Join Date: Jan 2004
Location: kansas city metro
Make/Model: 1993 N/A
Trader Rating: (2)
Posts: 2,229
Send a message via AIM to freakonaleash1187 Send a message via MSN to freakonaleash1187
Re: Sanhua Hid Kit Review / Install PICS!
looks nice, i want to get HID's, i might have to get some someday.
________________________

Heart of America Z Car Club Member
Hello my name is Jared and I am hated more than Sloppygoat and yellow90z32 combined. -Seriously.
freakonaleash1187 is online now Report Bad Post   Reply With Quote Quick reply to this message
Old Yesterday, 02:16 AM   #12
DropTop300ZX
NEZClub Prez

DropTop300ZX's Avatar

Join Date: Sep 2004
Location: Connecticut
Make/Model: 1993 Convertible
Trader Rating: (0)
Posts: 393
Send a message via AIM to DropTop300ZX
Re: Sanhua Hid Kit Review / Install PICS!
Great write up, I'm sold.
DropTop300ZX is online now Report Bad Post   Reply With Quote Quick reply to this message
Old Yesterday, 03:38 AM   #13
pinkdotts
Member

Join Date: Sep 2002
Location: Wichita Falls, TX
Make/Model: 1991 Silver TTZ
Trader Rating: (0)
Posts: 163
Send a message via AIM to pinkdotts
Re: Sanhua Hid Kit Review / Install PICS!
http://cgi.ebay.com/ebaymotors/Xenon-HID-Conversion-Kit-H1-H3-H4-H7-9004-9006-9007_W0QQitemZ8059055831QQcategoryZ36476QQrdZ1QQcmdZViewItem
im going to see if he can take maybe 10 or so orders and mention 300zx or something and get you guys a discount?

but even if not the price is already pretty low
pinkdotts is online now   Reply With Quote Quick reply to this message
Old Yesterday, 03:41 AM   #14
greatgonzer
NA to TT member

greatgonzer's Avatar

Join Date: Apr 2003
Location: Albuquerque, NM
Make/Model: 1990 NA Converted to TT
Trader Rating: (2)
Posts: 1,902
Talking Re: Sanhua Hid Kit Review / Install PICS!
Quote:
Originally Posted by pinkdotts
http://cgi.ebay.com/ebaymotors/Xenon-HID-Conversion-Kit-H1-H3-H4-H7-9004-9006-9007_W0QQitemZ8059055831QQcategoryZ36476QQrdZ1QQcmdZViewItem
im going to see if he can take maybe 10 or so orders and mention 300zx or something and get you guys a discount?

but even if not the price is already pretty low


That is the exact same Ebay seller that I used. I recieved my package from China in LESS THAN A WEEK!!!! Very satisfied with the product and with the service. Like Pinkdotts I recommend them and the seller highly.
greatgonzer is online now Report Bad Post   Reply With Quote Quick reply to this message
Old Yesterday, 06:24 AM   #15
ShadowRazer
LakerZ

ShadowRazer's Avatar

Join Date: Apr 2005
Location: Canyon Country, CA
Make/Model: 1990 N/A 2+0
Trader Rating: (1)
Posts: 180
Re: Sanhua Hid Kit Review / Install PICS!
Alright. I've never even considered getting HIDs, but you convinced me! Those things look good. I'll definitely buy from that same ebay seller, so please keep this thread updated once you know if we can somehow get a group buy on this. If there is one, I'm in for sure!
